gm5566国民彩票 ZB-R系列橡胶泵具有高效的自清洁功能，简洁的设计，优化了流体通道。高压差下脉动率更低。适用于聚丁橡胶、氯丁二烯橡胶、EPDM、SBR、NBR、天然橡胶等工艺中。
技术参数
gm5566国民彩票 泵体: 高温工具钢，
齿轮: 高温工具钢，渗氮钢
滑动轴承: 高温工具钢
轴封: 螺旋外排
加热系统 : 电加热 、热水加热
冷却系统：轴端冷却系统
gm5566国民彩票 规格/流量范围: 从50CC - 2000CC, 50cm3/rev - 2000cm3/rev
操作参数
gm5566国民彩票 粘度: ≤20000 Pas
温度: ≤130℃
清洗温度: ≤350℃
gm5566国民彩票 进口压力: ≤20MPa
gm5566国民彩票 高压差: 可达50MPa

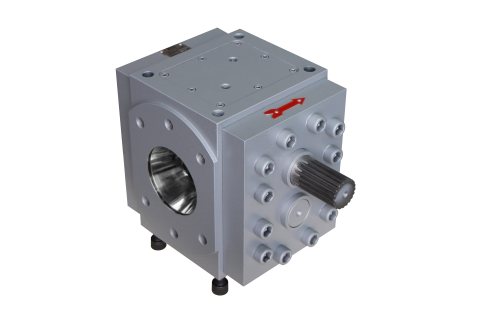

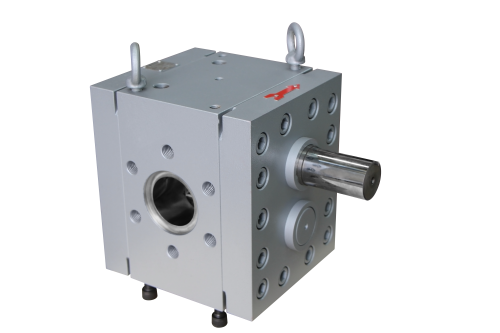

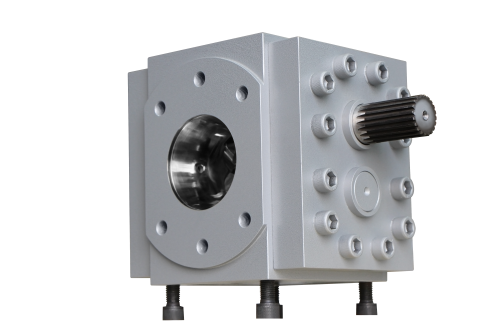

ZB-R Series Rubber Melt Pump
ZB-R series rubber melt pump is efficiently self-cleaning. The structure for shaft sleeves is simple, while the fluid passageway is specially designed. All of this make the pulsation rate become much lower under the higher differential pressure. This series of melt pump applies to butadiene rubber, chloroprene rubber, EPDM, SBR, NBR, natural rubber, etc.
gm5566国民彩票 Technical Parameter
Material for Melt Pump Body: High Temperature Tool Steel
Material for Gear: High Temperature Tool Steel or Nitrided Steel
Material for Sliding Bearing: High Temperature Tool Steel
Shaft Sealing: Spiral Discharging
Heating System: Electrical Heating or Hot Water Heating
Cooling System: Shaft End Cooling
Model/Volume Range: 50CC - 2000CC, 50cm3/rev - 2000cm3/rev
Operating Parameter
Viscosity: ≤20000
Working Temperature: ≤130℃
gm5566国民彩票 Cleaning Temperature:≤350℃
gm5566国民彩票 Inlet Pressure: ≤20MPa
gm5566国民彩票 Differential Pressure:≤50MPa
