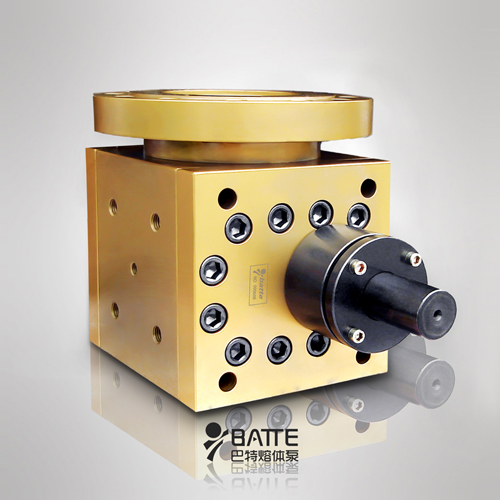

ZB-K系列釜底泵主要用于输送真空反应器中的中高粘度的介质，吸入口大法兰设计，在真空条件下能使高粘度介质顺利吸入。主要应用于ABS、PS、PC、PET、SAN、PP、PE Bioploymers等介质。
技术参数：
泵体：不锈钢，碳钢，哈氏合金，蒙乃尔合金
齿轮：工具钢，渗氨钢，特种材料及涂层，齿形为直齿，斜齿或人字齿
滑动轴承：工具钢，钛钽合金，银镍合金，特种材料及涂层
gm5566国民彩票 轴封：机械密封，填料+螺旋密封，带冲洗液的组合密封
加热系统：电加热
规格/流量范围：0.5CC-12000CC
操作参数：
粘度：≤40000Pa.s
gm5566国民彩票 工作温度：≤400℃(750°F)
清洗温度：≤450℃(850°F)
进口压力：真空--1.5MPa
gm5566国民彩票 出口压差：≤40MPa
gm5566国民彩票 ZB-K series bottoms pump is mainly used to transport vacuum reactor high-viscosity media, the inlet Dharma Blue design, enabling high-viscosity media smoothly under vacuum suction. Mainly used in ABS, PS, PC, PET, SAN, PP, PE Bioploymers other media.
Technical Parameters:
gm5566国民彩票 Pump body: stainless steel, carbon steel, Hastelloy, Monel
Gear: tool steel, ammonia seepage steel, special materials and coatings, tooth straight teeth, Helical or herringbone
Bearing: tool steel, titanium, tantalum alloy, silver-nickel alloys, special materials and coatings
Shaft seal: mechanical seals, packing + spiral seal with a combination of flushing liquid seal
gm5566国民彩票 Heating system: electric heating
gm5566国民彩票 Specifications / flow range: 0.5CC-12000CC
gm5566国民彩票 Operating parameters:
Viscosity: ≤40000Pa.s
Working temperature: ≤400 ℃ (750 ° F)
gm5566国民彩票 Cleaning temperature: ≤450 ℃ (850 ° F)
Inlet pressure: Vacuum --1.5MPa
Outlet pressure: ≤40MPa
